Low temperature storeroom product

The product can be used both indoor and outdoor. The product completed in the factory can be movable. Large low temperature storeroom can be built up to 1,000 pyeong on site.

  • Model specification

    1PY(3㎡)
    Model C-T100
    Dimension 1500 x 2000 x 2200
    freezer compartment
    (-20℃~5℃)    		 930 kcal
    refrigerator compartment
    (-5℃~5℃)    		 989 kcal

  • Image

    1py형 Image

  • Drawing

    1py형 Drawing

  • Model specification

    1PY(3㎡) - Discrete type
    Model C-T100
    Dimension 1500 x 2000 x 2200
    freezer compartment
    (-20℃~5℃)    		 930 kcal
    refrigerator compartment
    (-5℃~5℃)    		 989 kcal

  • Image

    1py형 Image

  • Drawing

    1py형 Drawing

  • Model specification

    1.3PY(4.5㎡)
    Model C-T210A
    Dimension 1500 x 3000 x 2200
    freezer compartment
    (-20℃~5℃)    		 1147 kcal
    refrigerator compartment
    (-5℃~5℃)    		 1260 kcal

  • Image

    1.3py형 Image

  • Drawing

    1.3py형 Drawing

  • Model specification

    1.3PY(4.5㎡) - Discrete type
    Model C-T210A
    Dimension 1500 x 3000 x 2200
    freezer compartment
    (-20℃~5℃)    		 1147 kcal
    refrigerator compartment
    (-5℃~5℃)    		 1260 kcal

  • Image

    1.3py형 Image

  • Drawing

    1.3py형 Drawing

  • Model specification

    2PY(7㎡)
    Model C-T230A
    Dimension 2000 x 3500 x 2500
    freezer compartment
    (-20℃~5℃)    		 1364 kcal
    refrigerator compartment
    (-5℃~5℃)    		 1532 kcal

  • Image

    2py형 Image

  • Drawing

    2py형 Drawing

  • Model specification

    2PY(7㎡) - Discrete type
    Model C-T230A
    Dimension 2000 x 3500 x 2500
    freezer compartment
    (-20℃~5℃)    		 1364 kcal
    refrigerator compartment
    (-5℃~5℃)    		 1532 kcal

  • Image

    2py형 Image

  • Drawing

    2py형 Drawing

  • Model specification

    2PY(7㎡)
    Model C-T230P
    Dimension 2000 x 3500 x 2500
    freezer compartment
    (-20℃~5℃)    		 1364 kcal
    refrigerator compartment
    (-5℃~5℃)    		 1532 kcal

  • Image

    2py type Image

  • Drawing

    2py형 Drawing

  • Model specification

    3PY(10㎡)
    Model C-T001E
    Dimension 2500 x 4000 x 2500
    freezer compartment
    (-20℃~5℃)    		 1825 kcal
    refrigerator compartment
    (-5℃~5℃)    		 2127 kcal

  • Image

    3py형 Image

  • Drawing

    3py type Drawing

  • Model specification

    3PY(10㎡) - Discrete type
    Model C-T001E
    Dimension 2500 x 4000 x 2500
    freezer compartment
    (-20℃~5℃)    		 1825 kcal
    refrigerator compartment
    (-5℃~5℃)    		 2127 kcal

  • Image

    3py형 Image

  • Drawing

    3py형 Drawing

  • Model specification

    3PY(10㎡)
    Model C-T001SP
    Dimension 2500 x 4000 x 2500
    freezer compartment
    (-20℃~5℃)    		 1825 kcal
    refrigerator compartment
    (-5℃~5℃)    		 2127 kcal

  • Image

    3py형 Image

  • Drawing

    3py형 Drawing

  • Model specification

    5PY(16.5㎡)
    Model C-T350
    Dimension 3000 x 5500 x 2500
    freezer compartment
    (-20℃~5℃)    		 2964 kcal
    refrigerator compartment
    (-5℃~5℃)    		 3254 kcal

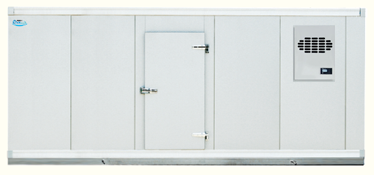

  • Image

    5py형 Image

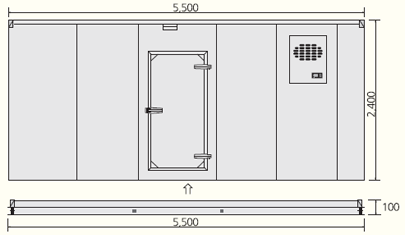

    Drawing

    5py형 Drawing

  • Model specification

    5PY(16.5㎡) - Discrete type
    Model C-T350
    Dimension 3000 x 5500 x 2500
    freezer compartment
    (-20℃~5℃)    		 2964 kcal
    refrigerator compartment
    (-5℃~5℃)    		 3254 kcal

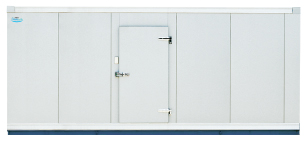

  • Image

    5py형 Image

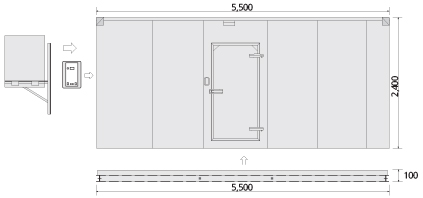

    Drawing

    5py형 Drawing

  • Model specification

    5PY(16.5㎡)
    Model C-T350P
    Dimension 3000 x 5500 x 2500
    freezer compartment
    (-20℃~5℃)    		 2964 kcal
    refrigerator compartment
    (-5℃~5℃)    		 3254 kcal

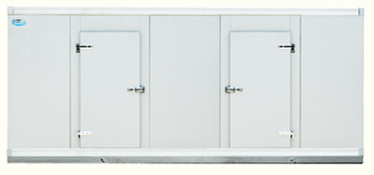

  • Image

    5py형 Image

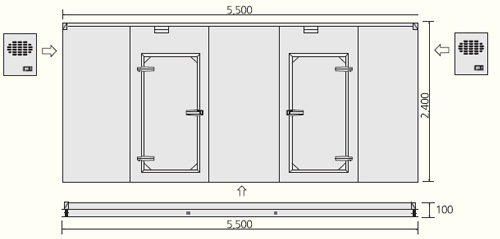

    Drawing

    5py형 Drawing

  • Model specification

    10PY(33㎡)
    Model C-T1000
    Dimension 3000 x 11000 x 3000
    freezer compartment
    (-20℃~5℃)    		 5024 kcal
    refrigerator compartment
    (-5℃~5℃)    		 6284 kcal

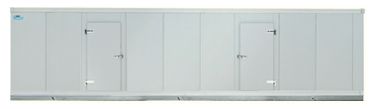

  • Image

    10py형 Image

    Drawing

    10py형 Drawing

  • Model specification

    50PY(165㎡)
    Dimension 5000 x 33000 x 4500
    50py

  • Model specification

    100PY(330㎡)
    Dimension 9000 x 37000 x 5000
    100py

  • Model specification

    150PY(495㎡)
    Dimension 10000 x 45000 x 6000
    150py

Basic specifications and options of low temperature storeroom

Basic specifications of low temperature storeroom (panel part)

Urethane panel Thickness 50T~150T / C-DECK PANEL 100~138㎜
Panel joint Urethane + Urethane + Aluminum + Bonding method
Steel sheet Galvanized embossing steel sheet for both indoor and outdoor use
Color silver gray
Heat-proof door Protruded door 1 set Right · left door, threshold
(door opening: 2 pyeong or more 800W x 1800H)
Atmospheric pressure control panel Non-powered atmospheric pressure control panel (for cold storage) /
Powered atmospheric pressure control panel (for freezing)
Waterproof inside lamp 5 pyeong or less (1-60W), 6 pyeong or more (2-60W)
Stiffening material A/L 90㎜ x 55㎜ x 3T (heat treatment, coating, aluminum) POST ROOF
Bottom steel frame structure Galvanized PIPE
Others Drain on the bottom

Optional specifications of low temperature storeroom

Door Overlap, miter gate
Power 220V, 380V
Cycle 60Hz, 50Hz
