Unit cooler



UNIT COOLER


Features of product

3/8”(Ø9.52) Use Inner Grooved Tube &
Corrugated Fin

Pipe pitch: 27.5mm X 31.75mm

Structure that enables easy maintenance

Use light and corrosion resistant aluminum embossing plate

Bar insert type body heater, drain heater and fan guide heater are mounted (But fan guide heater is applied to only L-TYPE. For M-TYPE, it is an optional specification)

Temperature switch for preventing overheating is mounted

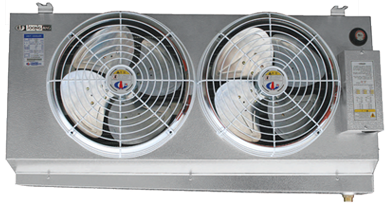

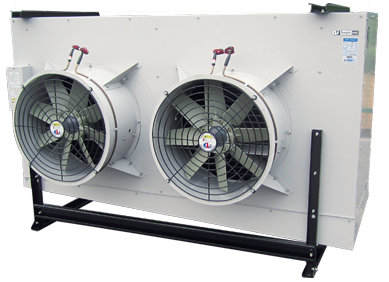

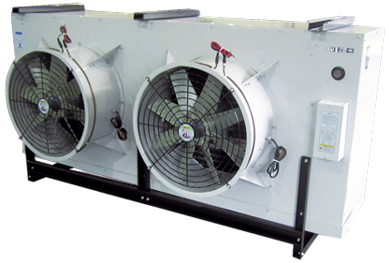

For small · medium size cold storage · freezing warehouse, ceiling mounting type


DIMENSION

SPECIFICATION

Model Nominal HP Room temp (℃) Fin Pitch (mm) Heat transfer area(m²) Temperature difference & kcal/h Fan Motor Air volume (CMM) Defrost heater
(kW X ea)
Pipe caliber (Ø)
TD
7℃
TD
10℃
(Ø×ea) 1Ø (W×P) 3Ø (W×P) Body Drain Guide Inlet Outlet Drain
S020 M 2 -10 6.0 7.88 1309 2385 350×1 100×4 0.1×4 35 0.76x2 0.7X1 - 12.7 19.05 25A
L -25 8.0 6.12 1017 1852 100×1
S030 M 3 -10 6.0 10.10 1678 3058 400×1 118×6 0.1×6 47 0.9x2 0.8X1 - 12.7 22.22 25A
L -25 8.0 7.84 1303 2375 100×1
S040 M 4 -10 6.0 13.53 2249 4097 400×1 118×6 0.1×6 47 1.2x2 1.0X1 - 12.7 22.22 25A
L -25 8.0 10.51 1746 3182 100×1
S050 M 5 -10 6.0 19.39 3222 5871 400×2 118×6 0.1×6 94 1.6x2 1.3X1 - 12.7 28.58 25A
L -25 8.0 15.06 2502 4559 100×2
S075 M 7.5 -10 6.0 26.13 4342 7912 450×2 200×6 0.2×6 118 1.8x3 1.5X1 - 15.88 34.92 25A
L -25 8.0 20.29 3372 6144 100×2
S100 M 10 -10 6.0 39.20 6513 11867 450×2 200×6 0.2×6 118 1.8x3 1.5X1 - 15.88 34.92 25A
L -25 8.0 30.44 5058 9216 100×2
S120 M 12 -10 6.0 42.61 7079 12899 450×2 200×6 0.2×6 118 2.0x3 1.6X1 - 15.88 34.92 25A
L -25 8.0 33.09 5498 10018 100×2
S150 M 15 -10 6.0 59.08 9817 17887 500×2 200×6 0.2×6 144 2.0x4 1.6X1 - 19.05 41.28 25A
L -25 8.0 45.88 7624 13891 100×2
S200 M 20 -10 6.0 90.89 15103 27519 600×2 750×6 0.75×6 236 2.3x6 2.1X1 - 22.22 41.28 25A
L -25 8.0 70.59 11729 21371 100×2
S250 M 25 -10 6.0 108.31 17997 32793 600×2 750×6 0.75×6 236 2.5x7 2.3X1 - 22.22 53.98 25A
L -25 8.0 84.12 13977 25468 100×2

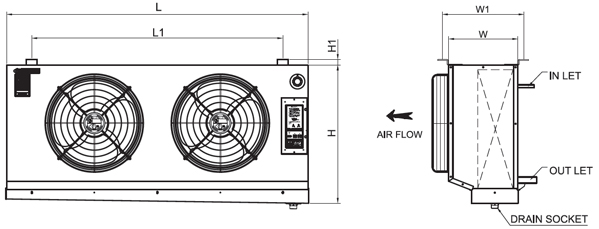

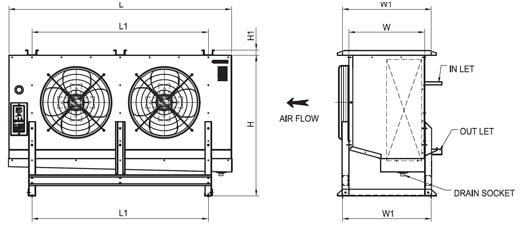

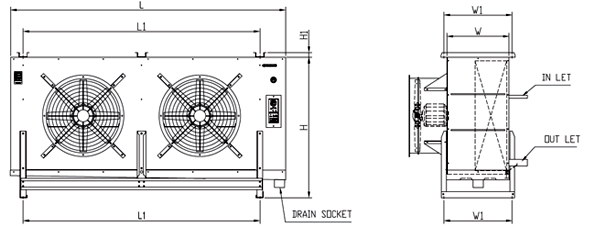

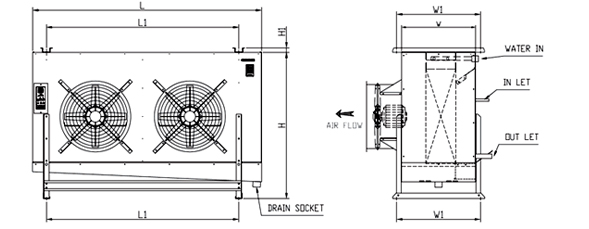

DIMENSIONS

External S020 S030 S040 S050 S075 S100 S120 S150 S200 S250
M L M L M L M L M L M L M L M L M L M L
L 657 767 937 1227 1417 1417 1517 1567 1845 1997
W 325 325 325 325 325 380 380 380 520 520
H 582 582 582 586 648 648 650 835 1027 1091
H1 27 27 27 27 27 27 35 35 35 35
L1 415 525 695 985 1175 1175 1275 1325 1525 1675
W1 361 361 361 361 361 416 450 450 600 600

Power supply of either 1Ø 220V 60Hz or 3Ø 220V/380V 60Hz is good. (Other specifications than the above motor specification are optional)

Detachment and attachment of M-TYPE defrost heater and temperature switch is optional specifications.

The products with special specifications other than the above product should be ordered separately.

The sizes and specifications are subject to change for quality development without prior notice.
